In any positively engaging drive — gear trains, timing belts, chain-and-sprocket systems — backlash is the dimensional gap between the driving element and the driven element when the direction of motion is reversed. In chain drives, sprocket backlash manifests as the free angular movement of the sprocket before the chain tightens and begins transmitting torque in the new direction. For most industrial chain drives running continuously in one direction, backlash is essentially irrelevant. For precision positioning drives, indexing systems, and any application requiring accurate bi-directional motion control, understanding and managing sprocket backlash is the difference between a functional system and one that accumulates positioning errors with every reversal.

This article explains what causes sprocket backlash in chain drives, how it is quantified, what its effects are in precision applications, and what design and maintenance practices keep it within acceptable limits. The subject is less frequently covered than chordal action or pitch diameter, yet for engineers working on conveyor registration systems, automated assembly equipment, or any chain-driven mechanism requiring repeatable positioning, it is at least as practically important.

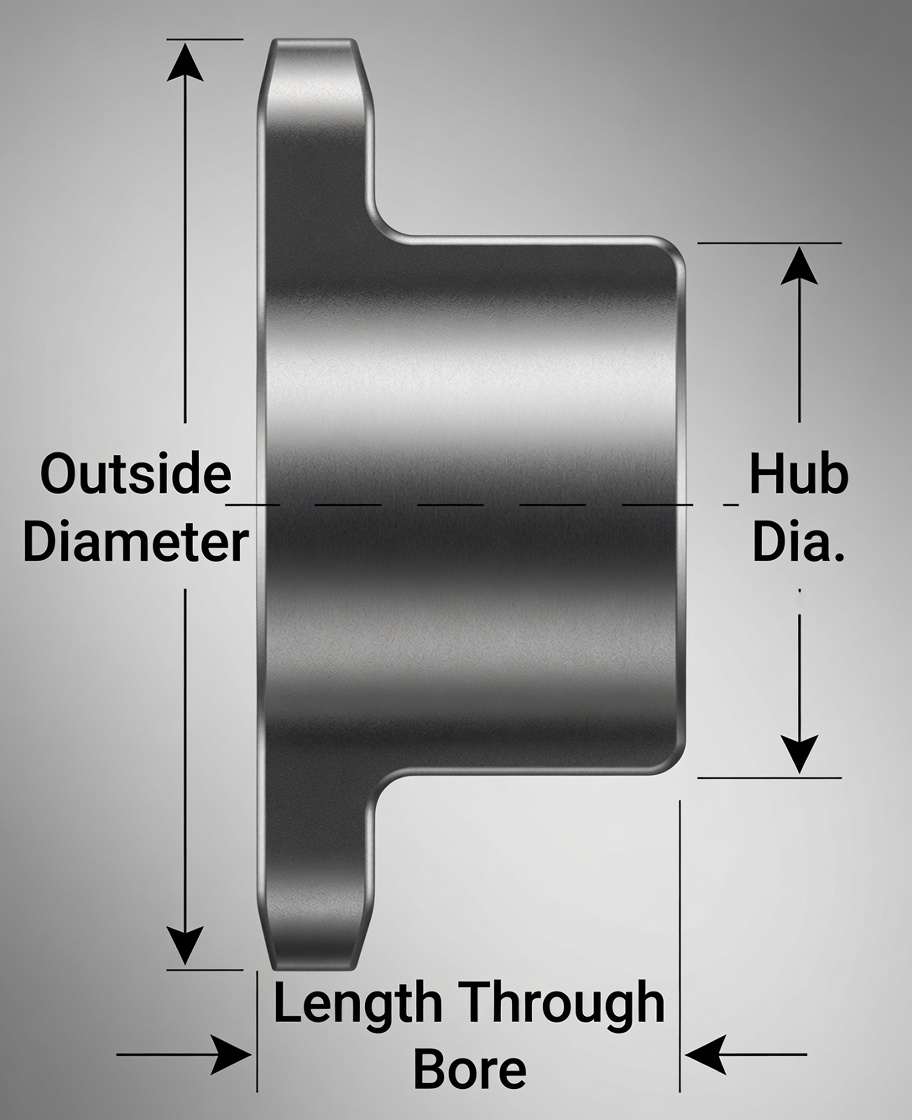

The Physical Origin of Sprocket Backlash

Backlash in a sprocket-chain drive arises from two sources that act simultaneously. The first is intentional clearance: chain standards specify that the roller diameter should be slightly smaller than the tooth-seating curve radius, creating a small gap between roller and tooth at the contact point. This clearance is necessary for the chain to engage and disengage the sprocket smoothly; without it, rollers would jam in the tooth pockets as the chain exits the drive sprocket. The second source is dimensional variation: manufacturing tolerances on chain pitch, roller diameter, and sprocket tooth spacing collectively produce a range of roller-to-tooth clearances across different chain-sprocket combinations.

When the drive direction reverses, the chain must travel backwards through the tooth clearance on every engaged tooth before any force is transmitted to the driven sprocket. The total backlash angle at the driven shaft is the sum of all these individual clearances distributed around the driven sprocket engagement arc, multiplied by the leverage relationship between chain pitch and sprocket pitch diameter. In practice, new chains on correctly machined sprockets typically produce backlash angles of 0.5° to 2° at the driven shaft; worn chains on worn sprockets can produce 5° or more.

How Backlash Is Measured and Quantified

Backlash in a chain drive is measured in two ways depending on whether the engineer is working at the chain level or the shaft level. At the chain level, backlash is expressed as the total longitudinal movement of the chain between the two sprockets when one shaft is held fixed and the other is moved in the reverse direction until the chain tightens. This is the most direct measurement and can be taken with a dial gauge mounted on the chain span.

At the shaft level, backlash is expressed as the angular rotation of the driven shaft between the point where the chain goes slack (on reversal) and the point where it tightens in the new direction. For precision applications, shaft-level measurement is more useful because it directly represents the positioning error that the application will experience. The relationship between chain-level and shaft-level backlash is: angular backlash (radians) = chain movement (mm) / (Dp/2), where Dp is the driven sprocket pitch diameter in mm.

Applications Where Sprocket Backlash Is a Critical Concern

The vast majority of industrial chain sprockets operate in continuously running, single-direction drives where backlash causes no measurable problem. The applications where backlash genuinely matters share a common characteristic: the driven mechanism must return to a precise position after a reversal, and any free movement during that reversal produces a cumulative or instantaneous positioning error.

Factors That Increase Backlash Over Time

Sprocket backlash is not static — it grows as the chain and sprocket wear. Understanding which factors accelerate this growth helps maintenance engineers plan replacement intervals appropriately for precision applications, rather than waiting for the general wear limit that would be appropriate for a single-direction continuous drive.

Design Strategies for Minimising Backlash in Precision Chain Drives

Engineers designing chain sprocket sets for precision applications have several tools available to minimise backlash in the initial design and to control its growth over the service life of the drive.

Strategy 1: Use Small Pitch Chain

For a given driven speed, a small-pitch chain on a larger tooth-count sprocket produces less absolute backlash than a large-pitch chain on a small-tooth-count sprocket. The smaller roller diameter associated with small-pitch chain produces less roller-to-tooth clearance per tooth, and the larger pitch diameter distributes the total chain clearance over a larger arc, reducing its angular equivalent at the shaft.

Strategy 2: Maximise Driven Sprocket Tooth Count

Increasing the tooth count on the driven sprocket reduces the angular equivalent of a given linear chain clearance. If a chain drive produces 2 mm of linear backlash and the driven sprocket has a 50 mm pitch radius, the angular backlash is 2/50 = 0.04 radians = 2.3°. If the pitch radius is increased to 100 mm by doubling the tooth count, the same 2 mm of linear backlash produces only 1.1° of angular backlash at the driven shaft.

Strategy 3: Replace Chain and Sprocket Together on Schedule

In a precision drive, establish a replacement interval based on chain elongation rather than visible wear. Measure chain elongation at regular intervals using a chain elongation gauge. Replace chain when elongation reaches 0.5% (rather than the 1–2% limit appropriate for general drives) and replace the drive sprocket simultaneously to prevent the new chain from inheriting the backlash of worn tooth pockets.

Strategy 4: Use a Tensioner on the Return Span

A spring-loaded idler tensioner on the slack side of the chain removes the sag that contributes to backlash during reversals. When the drive reverses, a tensioned slack span tightens much faster than a loose one, reducing the angular movement before torque transmission begins. This is the most cost-effective retrofit solution for existing drives showing excessive backlash from chain sag.

When to Consider Alternatives to Chain Drives for Precision Applications

For the most demanding positioning applications — where backlash below 0.1° is required and chain drives cannot reliably maintain this even with new components — the honest answer is that a chain drive may not be the right technology. Timing belt drives, with their continuous tooth-belt contact geometry, produce near-zero backlash and are the preferred alternative for precision indexing applications. Ball-screw drives and rack-and-pinion systems are used for even higher precision requirements. Our range of stainless steel sprockets and conveyor sprocket wheels is well-suited for the many applications where chain drive backlash is either irrelevant (unidirectional drives) or manageable (moderate-precision indexing) — and our engineering team can help assess whether a chain drive meets your positioning requirements before you commit to a design.
