Chain & Product Specifications

Product Overview

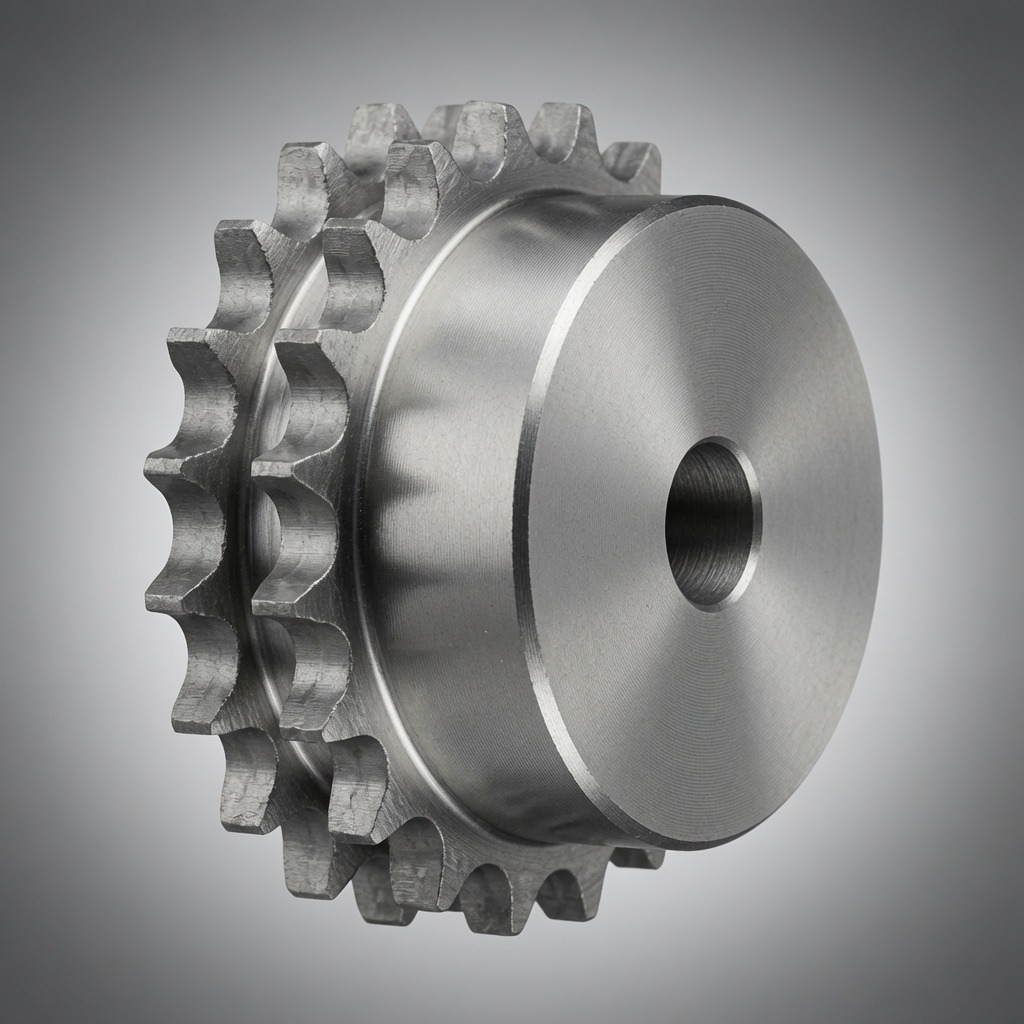

#35 Stainless Steel Sprockets are designed for ANSI No.35 roller chain at 3/8-inch pitch — a chain size that sits at the mid-point between the lightest and most common ANSI pitches and is widely used in agricultural seeding and tillage equipment, light industrial conveyors, vending-machine drives, and food-equipment chain drives across North American and export markets. Our #35 SS sprocket range covers 10 through 60 teeth, providing full coverage of the speed-ratio range from high-speed light drives to slow, high-torque applications at the larger tooth counts.

Manufactured in 304-grade stainless steel at our Hangzhou facility, these sprockets are dimensioned to ANSI B29.1 and directly replace equivalent parts from Tsubaki, Martin Sprocket, Browning (Regal Rexnord), and Rexnord without modification. Machine builders and MRO procurement teams sourcing through Ever-Power factory-direct access the same dimensional and material quality at substantially lower per-unit cost — a particularly significant advantage for agricultural OEMs and food-equipment manufacturers who consume large quantities of #35 series sprockets annually.

The 3/8-inch pitch occupies a functional sweet spot: compact enough for moderate-speed drives in tight spaces, yet strong enough to transmit meaningful torque for feeding, conveying, and metering applications. Combined with stainless steel construction, the #35 sprocket handles wash-down, outdoor weather, and food-contact environments that carbon-steel equivalents cannot survive without coating maintenance.

Full Dimensional Data — #35 Stainless Sprockets

All standard tooth counts from 10T to 60T. Outside diameter, stock bore, maximum bore, hub diameter, hub length, and weight in US customary units. Custom bores and keyways are available on request.

Material Quality, Surface Treatment & Process Controls

304-grade stainless bar stock is the standard material for the #35 SS range. Each production batch is accompanied by a mill certificate confirming the chromium (18–20%), nickel (8–10.5%), and carbon content that define the 304 specification. The tooth form is CNC-hobbed to ANSI B29.1 tolerances — a critical process parameter for No.35 chain, whose 3/8-inch pitch and small roller diameter require tighter hobbing accuracy than larger-pitch sprockets to avoid resonance and noise at typical chain speeds of 200–600 RPM.

For C45 carbon steel variants available on request, high-frequency induction hardening brings tooth-face hardness to 40–50 HRC, extending wear life in agricultural drives where abrasive grit accelerates tooth erosion. The vast majority of food and pharmaceutical buyers, however, specify 304 stainless for its combination of corrosion resistance, low maintenance, and regulatory compliance with food-contact surface requirements in the EU (EC 1935/2004) and the United States (FDA 21 CFR).

Passivation per ASTM A967 is performed after all machining operations on stainless parts. This treatment removes surface iron contamination from tool contact and restores the passive film that is the source of stainless steel’s corrosion resistance — a step that is frequently omitted by lower-quality suppliers and whose absence leads to premature surface rust even on 304 stainless components.

Industry Applications & Material Recommendations

Performance Characteristics

Complete No.35 Stainless Drive Components

Building or refurbishing a No.35 chain drive requires more than just sprockets. Ever-Power stocks matched chain, connecting links, and tensioning hardware — order everything for your drive from a single source and consolidate into one shipment.

Customer Reviews

Lead Times & Order Process

Standard stock-bore #35 SS sprockets dispatch in 3–6 business days. Custom bore, keyway, or non-catalogue tooth counts: 8–12 business days from drawing confirmation. MOQ: 1 piece (stock); 10 pieces (custom). Volume pricing from 50 pieces per part number. Contact our sales team for blanket-order and annual-supply programme pricing.

Frequently Asked Questions
